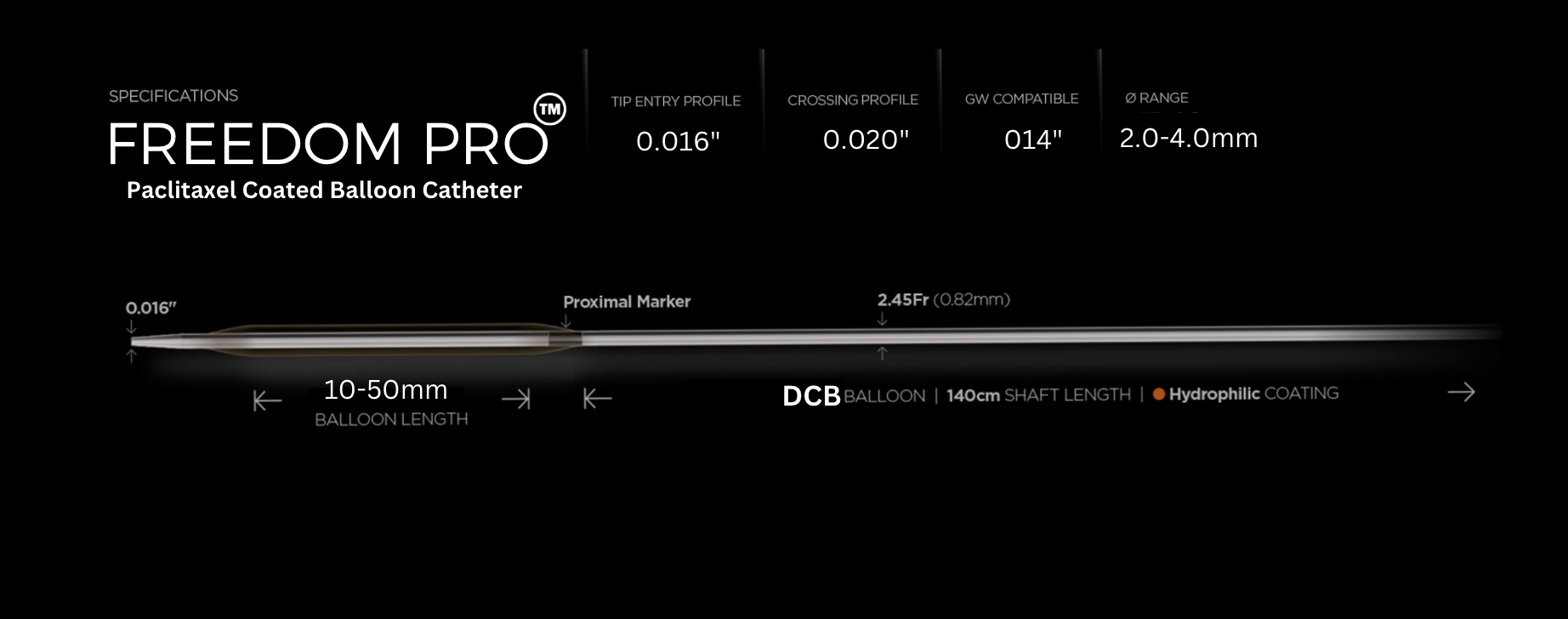

Technical Specification

Tip Entry Profile (inch)	0.016
Tip shape	Atraumatic
Tip length (mm)	3mm +/- 1mm
Catheter Useful Length (cm)	140 +/- 5cm
RX length (cm)	25 +/- 5cm
Hub Material	Polypropylene
Distal Shaft Diameter (French)	< 0.98mm Max
Proximal Shaft Diameter (French)	< 0.70mm Max
Balloon Crossing Profile (mm)	Ø 2.00: ≤0.66 mm (0.025") Ø 2.50: ≤0.67 mm (0.026") Ø 2.75: ≤0.70 mm (0.027") Ø 3.00-3.25: ≤0.72 mm (0.028") Ø 3.50: ≤0.75 mm (0.029") Ø 4.00: ≤0.86 mm (0.033")
Guidewire (inch and mm)	0.014
Guiding catheter compatibility (5F / 6F)	5 & 6F
Brachial and Femoral Marker (distance from tip)	90 & 100 CM
Marker Band (no. of marker)	2
Folding (no. of fold)	3 folds all
Balloon inflation time (sec.)	15
Balloon inflation time (sec.)	30
Bond Strength (N)	5
Balloon Compliance Chart	+/- 10%
Drug	Paclitaxel
Drug Dose	3.0µg/mm²

Available Configurations

Balloons	10 mm	15 mm	20 mm	25 mm	30 mm
2.00 mm	FWDCB20010	FWDCB20015	FWDCB20025	FWDCB20025	FWDCB20030
2.25 mm	FWDCB22510	FWDCB25515	FWDCB25520	FWDCB25525	FWDCB25530
2.50 mm	FWDCB25010	FWDCB25015	FWDCB25020	FWDCB25025	FWDCB25030
2.75 mm	FWDCB27510	FWDCB27515	FWDCB27520	FWDCB27525	FWDCB27530
3.00 mm	FWDCB30010	FWDCB30015	FWDCB30020	FWDCB30025	FWDCB30030
3.25 mm	FWDCB32510	FWDCB32515	FWDCB32520	FWDCB32525	FWDCB32530
3.50 mm	FWDCB35010	FWDCB35015	FWDCB35020	FWDCB35025	FWDCB35030
4.00mm	FWDCB40010	FWDCB40015	FWDCB40020	FWDCB40025	FWDCB40030
