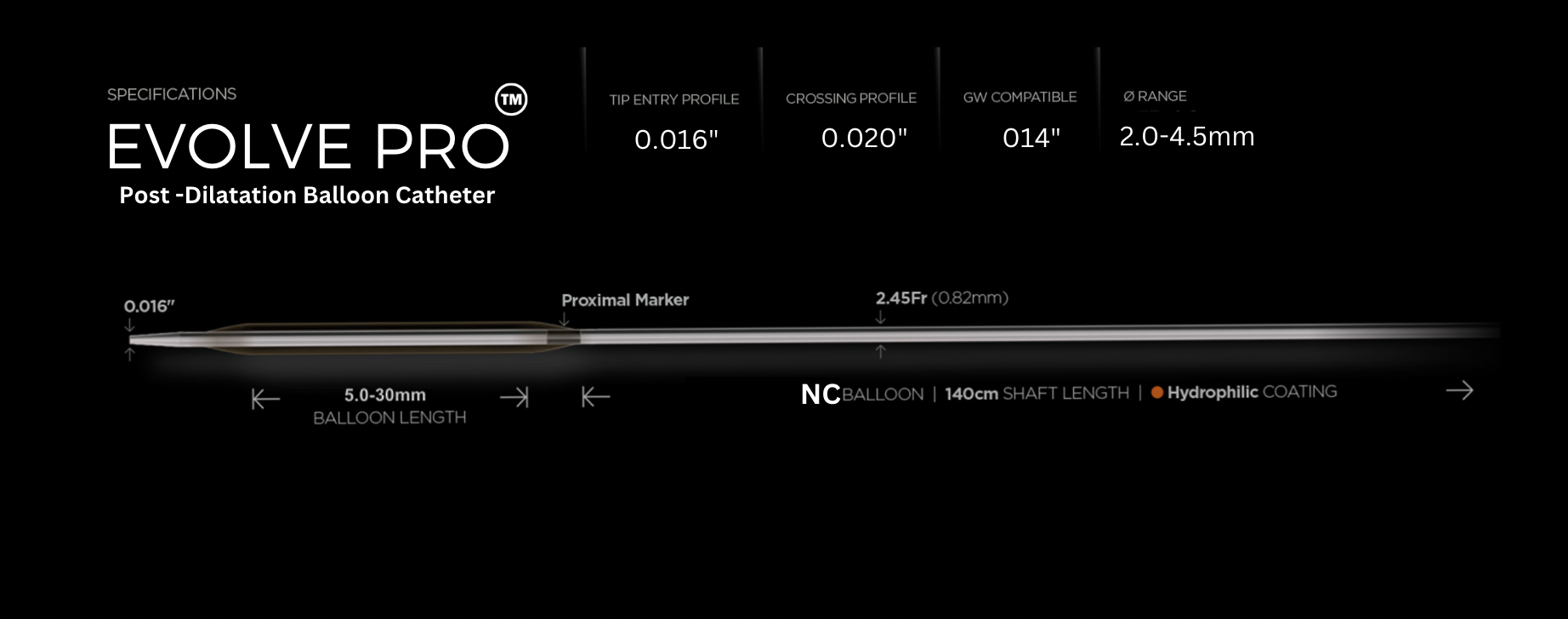

Evolve Pro NC PTCA
Hydrophilic coating
- Excellent hydrophilic coating technology, Super slip push.
- Reduce intraoperative delivery resistance.
- The delivery system is easy to reach the distal lesions.
Tip structure
- With smooth taper tip.
- Lifting conveyer through tortuous vascular capacity.
- Reduce the vascular stimulation.
Three layer inner tube
- Reduce the wire pushing resistance, provide support and pressure.
Technical Specification
Catheter Specifications |
Balloon Specifications |
||
| Category: | Rapid Exchange balloon catheter | Category. | Non Compliant |
| Guiding catheter compatibility | 5F | Material: | Polyamide |
| Guidewire compatibility. | 0.014" | X-Ray visibility. | Two platinum markers |
| Usable catheter length: | 142cm | Nominal Pressure: | 12 atm |
| Proximal shaft: | Stainless steel AISI 304, low friction hypotube with Teflon coating |
Rated Burst Pressure: | 22 atm[2.00 to 4.50 mm] |
| Distal shaft: | Mix Polyamide/PEBA with Hydrophilic coating |
Average Burst Pressure: | 28 atm |
| Tip material/entry profile: | PEBA blend/0.017" | ||
Ordering Information
BalloonDiame ter(mm) |
Balloon Working Length (mm) |
||||||||
5 |
8 |
10 |
12 |
15 |
17 |
20 |
26 |
30 |
|
1.00 |
FWNC10005 |
FWNC10008 |
FWNC10010 |
FWNC10012 |
FWNC10015 |
FWNC10017 |
FWNC10020 |
FWNC10026 |
FWNC10030 |
1.25 |
FWNC12505 |
FWNC12508 |
FWNC12510 |
FWNC12512 |
FWNC12515 |
FWNC12517 |
FWNC12520 |
FWNC12526 |
FWNC12530 |
1.50 |
FWNC15005 |
FWNC15008 |
FWNC15010 |
FWNC15012 |
FWNC15015 |
FWNC15017 |
FWNC15020 |
FWNC15026 |
FWNC15030 |
1.75 |
FWNC17505 |
FWNC17508 |
FWNC17510 |
FWNC17512 |
FWNC17515 |
FWNC17517 |
FWNC17520 |
FWNC17526 |
FWNC17530 |
2.00 |
FWNC20005 |
FWNC20008 |
FWNC20010 |
FWNC20012 |
FWNC20015 |
FWNC20017 |
FWNC20020 |
FWNC20026 |
FWNC20030 |
2.25 |
FWNC22505 |
FWNC22508 |
FWNC22510 |
FWNC22512 |
FWNC22515 |
FWNC22517 |
FWNC22520 |
FWNC22526 |
FWNC22530 |
2.50 |
FWNC25005 |
FWNC25008 |
FWNC25010 |
FWNC25012 |
FWNC25015 |
FWNC25017 |
FWNC25020 |
FWNC25026 |
FWNC25030 |
2.70 |
FWNC27505 |
FWNC27508 |
FWNC27510 |
FWNC27512 |
FWNC27515 |
FWNC27517 |
FWNC27520 |
FWNC27526 |
FWNC27530 |
3.00 |
FWNC30005 |
FWNC30008 |
FWNC30010 |
FWNC30012 |
FWNC30015 |
FWNC30017 |
FWNC30020 |
FWNC30026 |
FWNC30030 |
3.25 |
FWNC32505 |
FWNC32508 |
FWNC32510 |
FWNC32512 |
FWNC32515 |
FWNC32517 |
FWNC32520 |
FWNC32526 |
FWNC32530 |
3.50 |
FWNC35005 |
FWNC35008 |
FWNC35010 |
FWNC3502 |
FWNC35015 |
FWNC35017 |
FWNC35020 |
FWNC35026 |
FWNC35030 |
4.00 |
FWNC40005 |
FWNC40008 |
FWNC40010 |
FWNC40012 |
FWNC40015 |
FWNC40017 |
FWNC40020 |
FWNC40026 |
FWNC40030 |
Compliance Chart
| Pressure | Pressure | Diameter(mm) |
|||||||||
| (atm) | (KPa) | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 |
| 6 | 608.0 | 1.94 | 2.18 | 2.42 | 2.65 | 2.89 | 3.14 | 3.38 | 3.61 | 3.85 | 4.35 |
| 8 | 810.6 | 1.96 | 2.20 | 2.44 | 2.69 | 2.93 | 3.17 | 3.42 | 3.66 | 3.90 | 4.40 |
| 10 | 1013.3 | 1.98 | 2.23 | 2.47 | 2.72 | 2.96 | 3.21 | 3.46 | 3.70 | 3.95 | 4.45 |
| 12(NP) | 1215.9 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 |
| 14 | 1418.6 | 2.02 | 2.27 | 2.53 | 2.78 | 3.04 | 3.29 | 3.54 | 3.80 | 4.05 | 4.55 |
| 16 | 1621.2 | 2.04 | 2.30 | 2.56 | 2.81 | 3.07 | 3.33 | 3.58 | 3.84 | 4.10 | 4.60 |
| 18 | 1823.9 | 2.06 | 2.32 | 2.58 | 2.85 | 3.11 | 3.36 | 3.62 | 3.89 | 4.15 | 4.65 |
| 20 | 2026.5 | 2.08 | 2.35 | 2.61 | 2.88 | 3.14 | 3.40 | 3.66 | 3.93 | 4.20 | 4.70 |
| 22(RBP) | 2229.2 | 2.10 | 2.37 | 2.64 | 2.91 | 3.18 | 3.44 | 3.70 | 3.98 | 4.25 | 4.76 |
| 24 | 2431.8 | 2.12 | 2.39 | 2.67 | 2.94 | 3.22 | 3.48 | 3.74 | 4.03 | 4.30 | 4.81 |
| 26 | 2634.5 | 2.14 | 2.42 | 2.70 | 2.97 | 3.25 | 3.52 | 3.78 | 4.07 | 4.35 | 4.87 |
