Evolve Pro SDS PTCA
Master of Coronary Dilatation
Hydrophilic coating
- Excellent hydrophilic coating technology, Super slip push.
- Reduce intraoperative delivery resistance.
- The delivery system is easy to reach the distal lesions.
Tip structure
- With smooth taper tip.
- Lifting conveyer through tortuous vascular capacity.
- Reduce the vascular stimulation.
Three layer inner tube
- Reduce the wire pushing resistance, provide support and pressure.

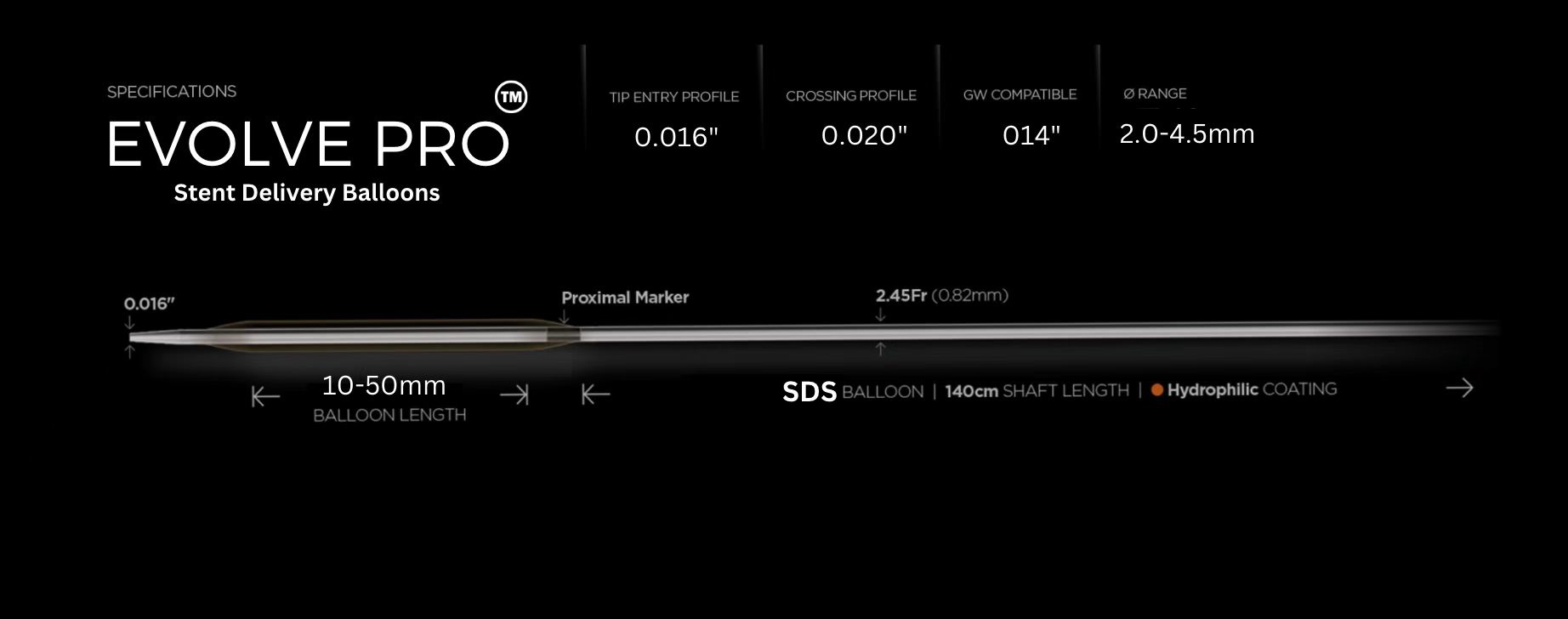

Technical Specification
Catheter Specifications |
Balloon Specifications |
||
| Category: | Rapid Exchange balloon catheter | Category. | Non Compliant |
| Guiding catheter compatibility | 5F | Material: | Polyamide |
| Guidewire compatibility. | 0.014" | X-Ray visibility. | Two platinum markers |
| Usable catheter length: | 142cm | Nominal Pressure: | 6 atm |
| Proximal shaft: | Stainless steel AISI 304, low friction hypotube with Teflon coating |
Rated Burst Pressure: | 16 atm |
| Distal shaft: | Mix Polyamide/PEBA with Hydrophilic coating |
Average Burst Pressure: | 24 atm |
| Tip material/entry profile: | PEBA blend/0.017" | ||
Ordering Information
|
(mm) |
Balloon Working Length (mm) |
||||||||
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
1.50 |
FWSDS15005 |
FWSDS15008 |
FWSDS15010 |
FWSDS15012 |
FWSDS15015 |
FWSDS15017 |
FWSDS15020 |
FWSDS15026 |
FWSDS15030 |
1.75 |
FWSDS17505 |
FWSDS17508 |
FWSDS17510 |
FWSDS17512 |
FWSDS17515 |
FWSDS17517 |
FWSDS17520 |
FWSDS17526 |
FWSDS17530 |
2.00 |
FWSDS20005 |
FWSDS20008 |
FWSDS20010 |
FWSDS20012 |
FWSDS20015 |
FWSDS20017 |
FWSDS20020 |
FWSDS20026 |
FWSDS20030 |
2.25 |
FWSDS22505 |
FWSDS22508 |
FWSDS22510 |
FWSDS22512 |
FWSDS22515 |
FWSDS22517 |
FWSDS22520 |
FWSDS22526 |
FWSDS22530 |
2.50 |
FWSDS25005 |
FWSDS25008 |
FWSDS25010 |
FWSDS25012 |
FWSDS25015 |
FWSDS25017 |
FWSDS25020 |
FWSDS25026 |
FWSDS25030 |
2.70 |
FWSDS27505 |
FWSDS27508 |
FWSDS27510 |
FWSDS27512 |
FWSDS27515 |
FWSDS27517 |
FWSDS27520 |
FWSDS27526 |
FWSDS27530 |
3.00 |
FWSDS30005 |
FWSDS30008 |
FWSDS30010 |
FWSDS30012 |
FWSDS30015 |
FWSDS30017 |
FWSDS30020 |
FWSDS30026 |
FWSDS30030 |
3.25 |
FWSDS32505 |
FWSDS32508 |
FWSDS32510 |
FWSDS32512 |
FWSDS32515 |
FWSDS32517 |
FWSDS32520 |
FWSDS32526 |
FWSDS32530 |
3.50 |
FWSDS35005 |
FWSDS35008 |
FWSDS35010 |
FWSDS35012 |
FWSDS35015 |
FWSDS35017 |
FWSDS35020 |
FWSDS35026 |
FWSDS35030 |
4.00 |
FWSDS40005 |
FWSDS40008 |
FWSDS40010 |
FWSDS40012 |
FWSDS40015 |
FWSDS40017 |
FWSDS40020 |
FWSDS40026 |
FWSDS40030 |
Compliance Chart
Balloon Diameter (mm) |
||||||||||||||
| Pressure | atm | (kPa) | 1.00 | 1.25 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 4.00 |
| 2 | 202.7 | 0.91 | 1.16 | 1.40 | 1.66 | 1.87 | 2.11 | 2.36 | 2.59 | 2.82 | 3.06 | 3.29 | 3.77 | |
| 4 | 405.3 | 0.96 | 1.20 | 1.45 | 1.70 | 1.94 | 2.18 | 2.43 | 2.67 | 291 | 3.16 | 3.39 | 3.89 | |
| NP* | 6 | 608 | 1.00 | 125 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 4.00 |
| 8 | 810.6 | 1.04 | 1.30 | 1.55 | 1.80 | 2.06 | 2.32 | 2.57 | 2.83 | 3.09 | 3.34 | 3.61 | 4.10 | |
| 10 | 1013.3 | 1.09 | 1.34 | 1.60 | 1.84 | 2.13 | 2.39 | 2.64 | 291 | 3.18 | 3.44 | 3.71 | 4.23 | |
| 12 | 1215.9 | 1.13 | 1.39 | 1.66 | 1.89 | 2.19 | 2.45 | 2.71 | 2.98 | 3.27 | 3.53 | 3.82 | 4.34 | |
| RBP** | 14 | 1418.6 | 1.17 | 1.44 | 1.71 | 1.94 | 2.25 | 2.52 | 2.78 | 3.06 | 3.36 | 3.62 | 3.92 | 4.45 |
| 16 | 1621.2 | 1.22 | 1.48 | 1.76 | 1.98 | 2.32 | 2.59 | 2.85 | 3.14 | 3.45 | 3.72 | 4.03 | 4.57 | |
| 18 | 1823.9 | 1.26 | 1.53 | 1.81 | 2.03 | 2.38 | 2.66 | 2.92 | 3.22 | 3.54 | 3.81 | 4.14 | 4.68 | |
| *Nominal Pressure.The nominal in vitro device specifications do not take into account any lesion resistance. **Rated Burst Pressure.Do not exceed RBP. |
||||||||||||||
